Warehouse Barrier and Rack Protection
-
Barriers help comply with today's Health & Safety regulations
-
As well as protecting racking, barriers segregate and protect lift truck
battery chargers, vending machines, conveyors, factory or warehouse
offices
-
Demarcate pedestrian areas and doorways
 Protection
Barrier
Modular Barrier System for protection against fork lift truck damage.
Rail fits within the uprights to offer smooth face. Supplied as complete
kit, comprising 2 uprights, 1 rail, floor fixings, nuts, bolts and
washers. Rails are manufactured from steel, are 310mm deep and come in a galvanised finish as standard. Uprights are 750mm high and
manufactured from 100mm x 100mm hollow steel section, powder
coated orange with a plastic cap to top of post. Baseplate is pre-drilled for floor fixings.
(Picture for illustration only, standard colours are: Posts - Orange; Rail - Galvanised. Yellow as shown available at extra cost)
 Tubular Barrier
Modular Barrier System for protection against fork lift truck damage.
Supplied as a complete 1 piece barrier with floor fixings. Barriers are
manufactured from 89mm diameter tube with rounded corners and powder coated Orange. Barriers are 500mm high.
(Picture for illustration only, standard colour is Orange. Yellow as shown available at extra cost)

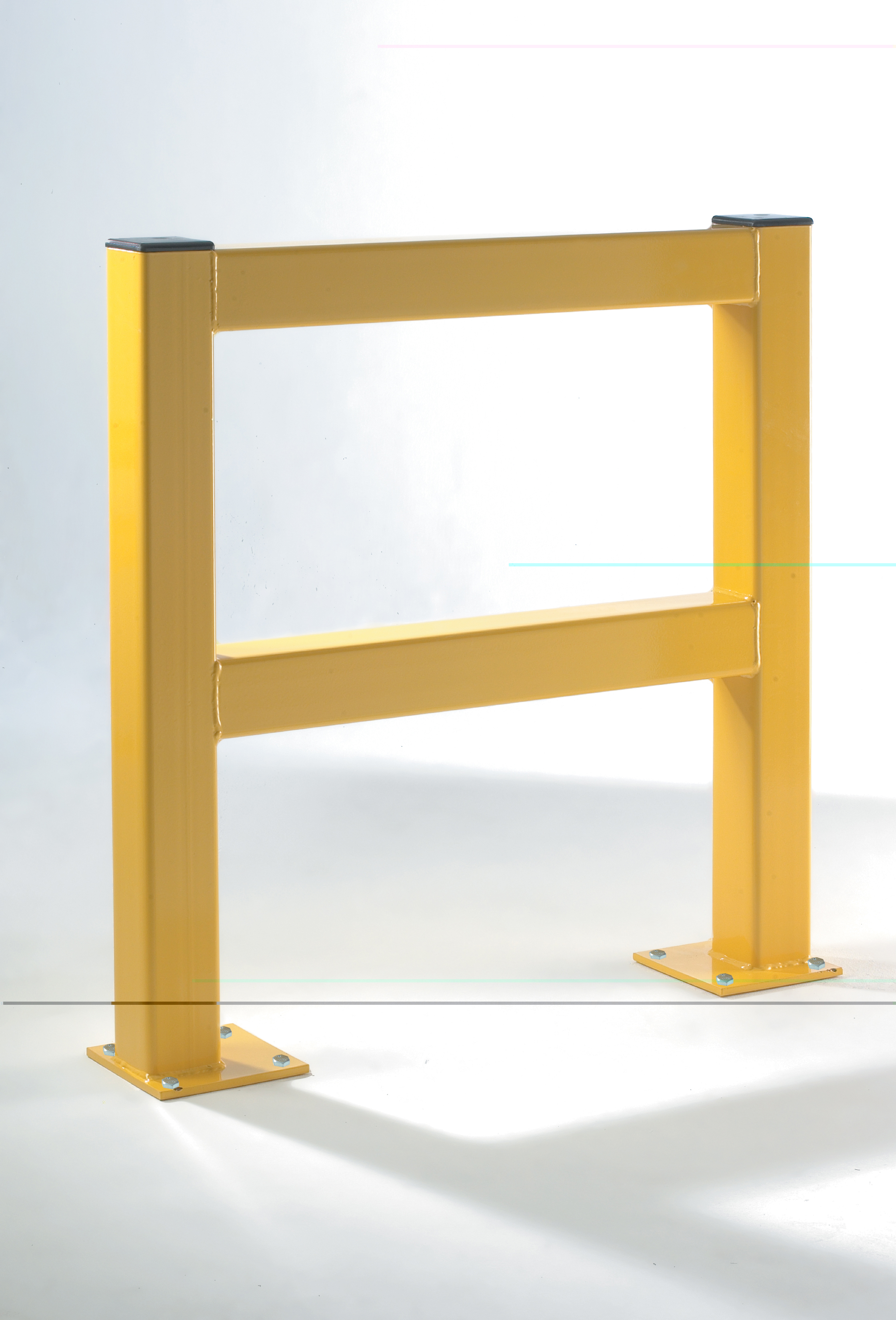

 Double
Rail Barrier
Welded barrier system for end of racks or
walkways in production and distribution areas. 750mm high, posts manufactured
from 100mm x 100mm hollow section steel, rails manufactured from 100 x 50mm hollow section steel. Powder coated orange.
Baseplates are pre-drilled for 4 floor fixings. Supplied complete with
floor fixings
(Picture for illustration only, standard colour is Orange. Yellow as shown available at extra cost)
 Upright/Corner
Protectors
Protects the bottom of pallet racking uprights
from accidental damage from fork lift trucks. 'U' shaped protector gives
3 way protection to the upright. The alternative 'L' type protector
provides greater clearance from end of rack. Both are 400mm high,
manufactured from 5mm steel, painted orange and supplied with floor
fixings.
(Picture for illustration only, standard colour is Orange. Yellow as shown available at extra cost)

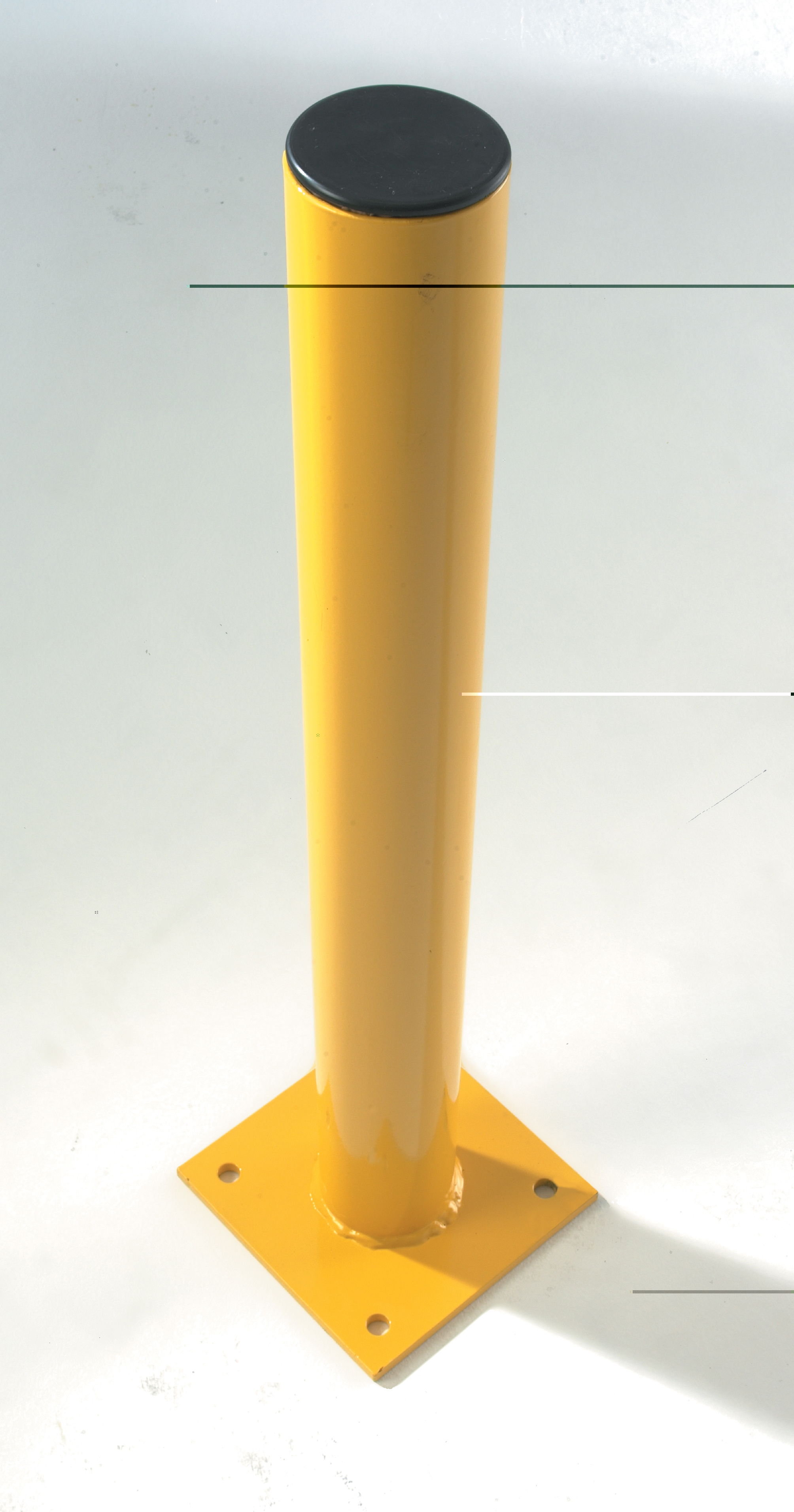

 Tubular
Bollards
Supplied complete with floor fixings. Powder coated orange, plastic cap fitted
on top.
Height: 750mm
Tube diameter: 89mm
Base plate size: 200 x 200 x 10mm
Hole diameter: 14mm
Weight: 8kgs
Height: 915mm
Tube diameter: 114mm
Base plate size: 200 x 200 x 10mm
Hole diameter: 14mm
Weight: 14kgs
Height: 1100mm
Tube diameter: 168mm
Base plate size: 250 x 250 x 15mm
Hole diameter: 18mm
Weight: 30kgs
(Picture for illustration only, standard colour is Orange. Yellow as shown available at extra cost)
|
